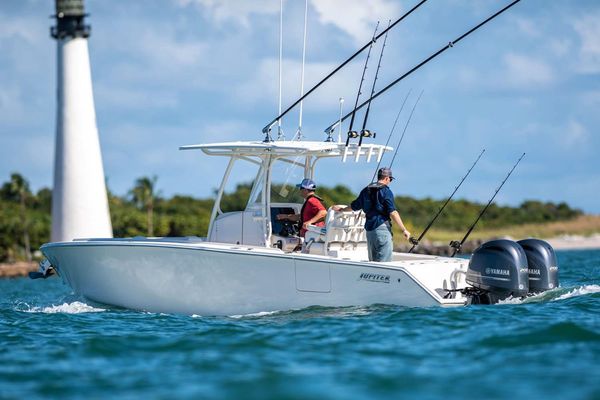

Jupiter 26 - main image

2021 Jupiter 26

Year 2021
Length 26'5 ft

The 26 FS offers the style, performance and quality you expect from Jupiter in an affordable, trailerable model. Factor in angling essentials plus family-friendly features and the choice becomes even easier.

Specifications

Year Built 2021
Category Power
Beam 8'8 ft
Max Draft 2'7 ft
Construction Fiberglass
Deadrise Angle 23 °
Min Draft 1'8 ft
Engines 2
Fuel Tanks 1
Fuel Tank Cap. 147 gal
Water Tanks 1
Water Tank Cap. 20 gal
Holding Tanks 1
Holding Tank Cap. 6 gal
Dry Weight 5,460 lb
Bridge Clearance 7'10 ft

Engine 1 Specifications

Type: Outboard

Engine 2 Specifications

Type: Outboard
Features
  • Closed Cell PVC Foam Coring
  • Deck Mechanically Fastened and Fiberglass Bonded to Hull
  • Fiberglass Uni-Grid Stringer System
  • Hand-Laid with Multidirectional Biaxial & Triaxial Knitted Fiberglass
  • Hi-Tech Composite Construction
  • High Density Composite Core Transom
  • Inner Liner Integrally Bonded to Hull
  • No Wood-No Rot Laminated Design
  • Posi-Stern Hull Pad Design
  • Solid Fiberglass Bottom
  • Vinylester Resin Barrier to Prevent Osmotic Blistering
  • Anchor Locker, Top Loading
  • Boarding Ladder & Grab Rail
  • Coaming Bolsters
  • Dry Storage Compartment Forward
  • Fishbox with Macerator, 102 Gallons
  • Forward Dry Storage Compartments, 2 Each, 65 Gallons
  • Freshwater Washdown
  • Freshwater Sink with Pull Out Shower
  • Molded Fiberglass Gasketed Hatch
  • Non-Skid Decks with Self Bailing Cockpit
  • (4) Rod Holders
  • Salt Water Washdown
  • Walk Thru Transom Door
  • Livewell 35 Gallons
  • Helm Seat, Prep Center with Seat, Back, Rod Holders, Drink Holders and Tackle Cabinet
  • Rod Racks, Port and Starboard
  • All Wiring Tin Coated Copper
  • Bonded Electrical System
  • Circuit Protection Throughout
  • Cockpit Lighting, White
  • White Under Gunwale Lighting
  • Color Coded & Numbered Wiring System
  • Courtesy Light in Console
  • Hi-Water Bilge Alarm
  • International Navigation Lights
  • Marine Horn, Electric, Dual
  • C-Zone Digital Switching
  • Vapor Proof Battery Switches
  • HD Marine Batteries, AGM
  • Battery Charger, Multi Bank
  • Electric Head with Holding Tank
  • Freshwater Marine Head, Electric with Holding Tank
  • All Fasteners, Hinges and Hardware are Stainless Steel
  • Bilge Pumps, Automatic/Manual (2) 2000 GPH
  • Bronze Thru-Hull Fittings Below Waterline
  • Deck Hardware, Flush Mounted, Stainless Steel
  • Double Stainless Steel Hose Clamps Below Waterline
  • Fuel Filters/Water Separator(s) 10 Micron
  • Fuel Tank, HD Marine Aluminum, Coal Tar Coated
  • Heavy Duty Vinyl Rub Rail with SS Insert
  • Seacocks on all Below Water Thru-Hulls
  • Lenco Trim Tabs, Recessed with Auto Retract and Indicators
  • Water Tank with Gauge
  • Livewell Pump, HD 1600 GPH
  • White Upholstery & Piping with Diamond Stitching
  • White Jupiter Logo on Seating
  • White Powder Coat Package
  • Release Marine Cup Holders
  • Battery Storage Compartment
  • Molded Glove Box with Dual USB Charging Ports
  • Compass, High Speed
  • Console Seat with Cushions
  • Edson Black Steering Wheel
  • Easy Access Entry Door to Head, Lockable
  • Hydraulic Helm Unit, Adjustable
  • Molded Head Compartment
  • Molded Insulated Drink Cooler
  • Plexiglass Windscreen
  • Power Outlet, 12V
  • Recessed Key Switches
  • Stand Up Head Compartment
  • Binnacle Control with Power Trim
  • Engine Alarm System
  • Engine Cables & Harness
  • Fuel/Water Sensor with Alarm
  • Hull Boot Stripe with Accent
  • Seastar Optimus Electronic Power Steering (EPS)
  • Stainless Steel Propellers Matched to Engines
  • Premium Multifunction Instrumentation to Include: Tachometers, Voltmeter, Hour Meters, Fuel Gauges, Water
  • Gauges, Fuel Monitoring System
  • Custom T-Top with Fiberglass Hardtop
  • Handrails for T-Top, Port & Starboard
  • Lumitec Mirage Spectrum Lighting in Hardtop
